Low Bed Semi Flatbed Semi Trailer 70 T 3 Axles With 16m Length

Name: Low Bed Semi Flatbed Semi Trailer 70 T 3 Axles With 16m Length
Brand: SUNY
Price: 18 USD

China Low Bed Semi Flatbed Semi Trailer 70 T 3 Axles With 16m Length factory

Brand Name : SUNY

Model Number : SY9404

Certification : CCC, ASME, BV, SGS, etc

Place of Origin : China

MOQ : 1 unit

Price : USD 18,000 Unit

Payment Terms : T/T, L/C

Supply Ability : 500 Unit / Month

Delivery Time : 10 - 20 Working Days

Packaging Details : After Waxing by Container, RO-RO, Bulk Freighter

Material : Optional Q235 Q345 T700

Axle : 3 axles Fuwa Brand , load 16 T Optional BPW , YUEK

Tire : 12.00R20 Triangle brand

Suspension : Heavy duty Mechanical suspension

King pin : JOST brand 2.0 or 3.5inch Welding type

Support leg : Support leg

Ladder : Manual type

Load capacity : 70 T Optional 60 t , 50 t , 40 t

Contact Now

Low Bed Semi Flatbed Semi Trailer 70 T 3 Axles With 16m Length

Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .

Tare Weight	About 10 T
Dimension	16000 * 2500 * 3900 mm (Remove the ladder height 1800 mm)
Loading Capacity (T)	70 T
Axle	16 T, FUWA Brand
Rim	8.5-20 (Special for export market)
Tire	12.00R20 * 13 units(with one spare tire) Triangle brand
Suspension	Heavy duty Mechanical suspension (Special for export market)
Spring leaf	90(W) mm * 16(Thickness) mm * 10 Layer (Special for export market)
King pin	JOST brand 2.0 or 3.5 inch Welding type
Support leg	JOST brand C200T
Main beam	Height: 520 mm , upper plate is 25 mm , middle plate is 12 mm , 25 mm ; Material is Q345B Steel .
Side beam	20 mm channel steel ( Material is Q235steel ).
Bottom Platform	5 mm thickness diamond steel plate
Ladder	Manual type
Gooseneck	For choose
Brake chamber	WABCO RE 6 relay valve ; T30/30+T30 Spring brake chamber ; one piece of 45L air tanks
ABS	Without
Twist Locks	Twelve pieces (Lifting type)
Valve	WABCO valve
Light	LED light (Special for export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece , 1 m× 0.5 m × 0.5 m (equipped with 1 unit Tire spanner ,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust , 1 coat of anticorrosive prime , 2 coats of final paint

Low Bed Semi Flatbed Semi Trailer 70 T 3 Axles With 16m Length

Product Tags:

flat bed trailer

semi low bed trailer

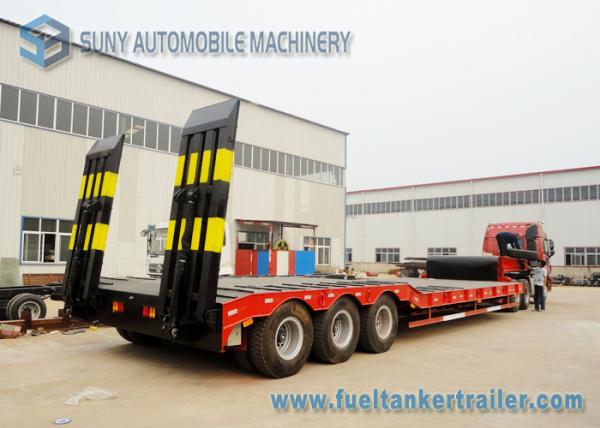

Low Bed Semi Flatbed Semi Trailer 70 T 3 Axles With 16m Length Images
