65T Terminal Frame Container Flatbed Semi Trailer 40 ft 2 Lines Skeleton

Product Categories

Hubei Suny Automobile And Machinery Co., Ltd

Contact Now

65T Terminal Frame Container Flatbed Semi Trailer 40 ft 2 Lines Skeleton

Name: 65T Terminal Frame Container Flatbed Semi Trailer 40 ft 2 Lines Skeleton
Brand: SUNY
Price: 18000 USD

China 65T Terminal Frame Container Flatbed Semi Trailer 40 ft 2 Lines Skeleton factory

Brand Name : SUNY

Model Number : SY9008

Certification : CCC, ASME, BV, SGS, etc

Place of Origin : China

MOQ : 1 unit

Price : USD 18000 ~ 30000 / unit

Payment Terms : T/T, L/C

Supply Ability : 500 Unit / Month

Delivery Time : 10 - 20 working days

Packaging Details : After Waxing by Container , RO-RO , Bulk Freighter

Load capacity : 30 T ~ 65 T

Axle : 2 lines 4 axles

Suspension : Mechanical suspension

Tire : 385/65R22.5

Wheel rim : 9.75-22.5

Kingpin : 3.5`` bolt-in king pin

Landing gear : Standard heavy duty landing gear 28 T

Contact Now

Terminal Frame Container Trailer 40 ft 2 Lines Skeleton Container Semi Trailer

2 lines 4 axles / Tire : 385/65R22.5

Optional 2 axles , 3 axles , 4 axles

Size : 20 ft , 45 ft , 53 ft ,etc

Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .

CHASSIS SEMI TRIALER
Size	13000 * 2758 * 1789 mm
Payload	65 T
Chassis	Heavy duty and extra durability designed I beam ; opting for high tensile steel Q345 , welded by automatic submerged-Arc processes . Top flange 14 mm , width140 mm ; Middle Flange 8 mm ; bottom flange16mm , width 140 mm
Axle	2 lines 4 axles
Suspension	Mechanical suspension
Leaf spring	No
Floor	No
Tire	385/65R22.5 double star brand 8 pcs
Wheel rim	9.75-22.5 better brand 8 pcs
Kingpin	3.5” bolt-in king pin
Landing gear	Standard heavy duty landing gear 28 t
Twist lock	No
Vehicular application	Container transport
Drawing	Including
Braking system	Standard
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust , 1 coat of anticorrosive prime , 2 coats of final paint
Accessories	Four side light , two rear light

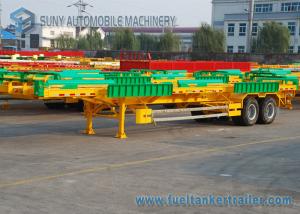

65T Terminal Frame Container Flatbed Semi Trailer 40 ft 2 Lines Skeleton
